What is a 12V DC PWM Controller and How Does It Work?

Answer: A 12V DC PWM controller is a device that regulates the speed of a 12V DC motor or fan by adjusting the power supply using pulse width modulation (PWM), allowing for precise control and energy efficiency.

PWM (Pulse Width Modulation)

A technique used to control the amount of power delivered to an electrical device by varying the width of the pulses in a signal, rather than changing the voltage or current directly.

12V DC

A direct current (DC) power supply of 12 volts, commonly used in automotive, industrial, and electronic applications.

Let’s consider a scenario where a user is building a custom PC cooling system and wants to control the speed of a 12V DC fan based on temperature. In this case, a 12V DC PWM controller is essential. The controller works by sending a series of electrical pulses to the fan, where the width of each pulse determines the speed. A 100% duty cycle means the fan runs at full speed, while a 50% duty cycle means it runs at half speed.

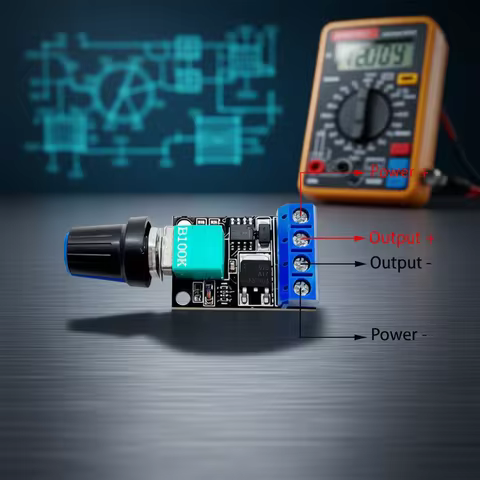

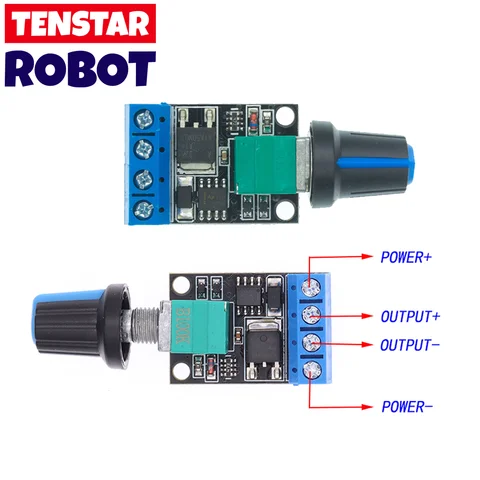

1. Connect the 12V DC power supply to the controller.
2. Attach the 12V DC fan to the controller’s output.
3. Use a temperature sensor or manual control to adjust the PWM signal.
4. Monitor the fan speed and adjust as needed for optimal cooling performance.

How to Choose the Right 12V DC PWM Controller for Your Application?

Answer: To choose the right 12V DC PWM controller, consider the load current, voltage compatibility, control method (manual or automatic), and whether it supports additional features like temperature sensing or remote control.

Imagine a user who is installing a 12V DC motor in a small electric vehicle. They need a controller that can handle the motor’s current draw and provide smooth speed control. The key is to match the controller’s specifications with the motor’s requirements.

1. Measure the motor or fan’s current draw and voltage requirements.
2. Choose a controller with a current rating higher than the load to avoid overheating.
3. Decide whether you need manual control or automatic control based on your application.
4. Check for additional features like remote control or temperature sensing if needed.

What Are the Common Issues with 12V DC PWM Controllers and How to Fix Them?

Answer: Common issues include overheating, inconsistent speed control, and incorrect voltage output. These can be resolved by ensuring proper ventilation, checking wiring connections, and using a multimeter to verify voltage levels.

Consider a user who installed a 12V DC PWM controller for a 12V DC motor in a workshop tool. After a few weeks, the motor began to run inconsistently. The user suspected the controller was the issue and followed these steps to troubleshoot:

1. Check the controller’s temperature using a thermal camera. If it’s overheating, improve ventilation or reduce the load.
2. Inspect the wiring for loose or damaged connections. Tighten or replace as needed.
3. Use a multimeter to measure the output voltage and compare it to the expected 12V DC. If it’s lower, the controller may be faulty.
4. Test the controller with a different motor or fan to confirm if the issue is with the controller or the load.

User Reviews and Real-World Performance of 12V DC PWM Controllers

Answer: Users generally report high satisfaction with 12V DC PWM controllers, especially when they are used for cooling systems, motor control, and DIY projects. Performance depends on the quality of the controller and the application setup.

One user who used a 12V DC PWM controller for a 12V DC fan in a custom-built PC noted that the controller allowed for smooth and quiet fan operation, especially when paired with a temperature sensor. Another user who used a 12V DC PWM motor speed controller for a small electric cart found that the controller provided stable speed control and was easy to install.

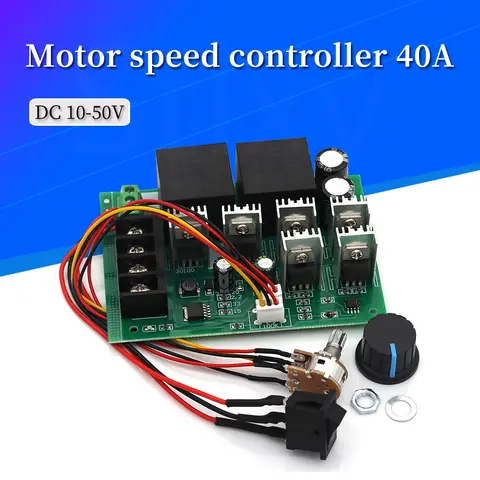

Some users reported issues with lower-quality controllers overheating under high load, but these were resolved by upgrading to a higher-rated 12V DC PWM controller, such as a 12V PWM controller 40A or a 12V PWM controller 15A model. Others found that using a 12V DC motor controller with remote control support improved their workflow in industrial settings.

Other Related Products and Applications

While the focus of this guide is on the 12V DC PWM controller, there are several related products that may be of interest depending on your application. For example, if you're working with higher voltage systems, you might consider a 24VDC PWM controller or a 220V DC PWM motor controller. If you're dealing with smaller electronics, a 5V to 12V PWM controller could be more appropriate.

For motor control applications, a 12V PWM motor speed controller or a 12V PWM DC motor controller may be necessary. If you're working with high-current systems, a 12V 100A PWM controller or a 12V 8A DC PWM controller could be more suitable. Additionally, if you're looking for a more compact solution, a 12V DC PWM fan controller might be the best fit for your cooling needs.
